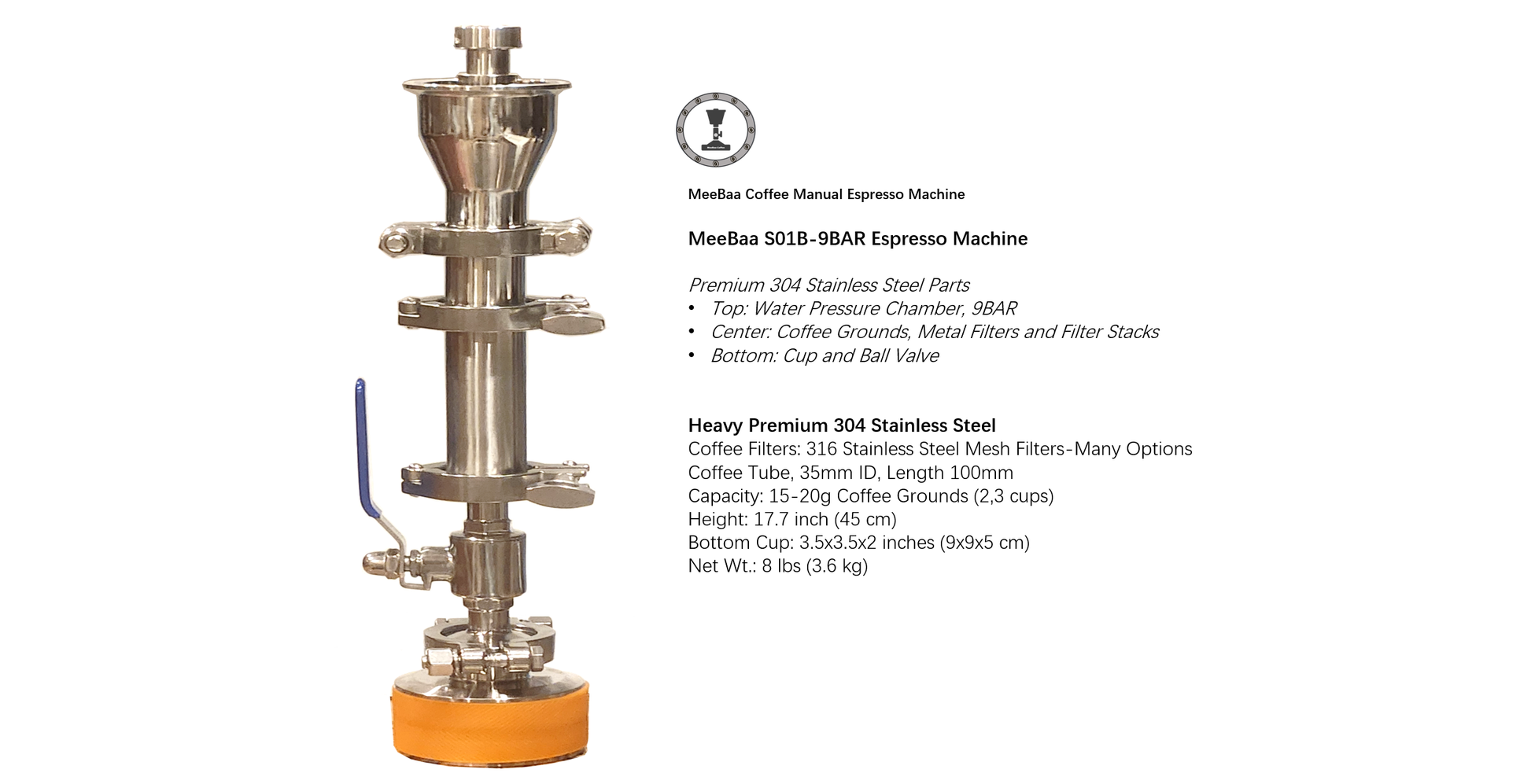

MeeBaa S01A-9BAR Premium Manual Espresso Platform

Professional-Grade Engineering | High-Tolerance Manual Pressure Vessel

Important Model Note: This listing covers the premium MeeBaa S01 platform, applicable to the mechanically identical S01A-9Bar and S01B-9Bar series architectural cores.

Architectural & Technical Specifications

The MeeBaa S01 series is a zero-electronics, pure mechanical manifestation of fluid dynamics and thermodynamic stability, built for high-resolution home espresso brewing.

• Core Material: Heavy, food-grade 304 Stainless Steel construction.

• Target Pressure: True 9-Bar extraction.

• Required Input: Approximately 29 kg (64 lbs) of downward weight (the machine does not create pressure—the operator does via the manual piston stroke).

• Piston Stroke Target: 30 to 35 seconds per extraction.

• Capacity: Massive 300 ml water chamber volume / 15g to 22g dry coffee basket capacity.

• Weight: 3.6 kg net machine weight (4.3 kg solid packaged shipping weight).

• Base Footprint: 9 cm diameter heavy stabilizing baseline.

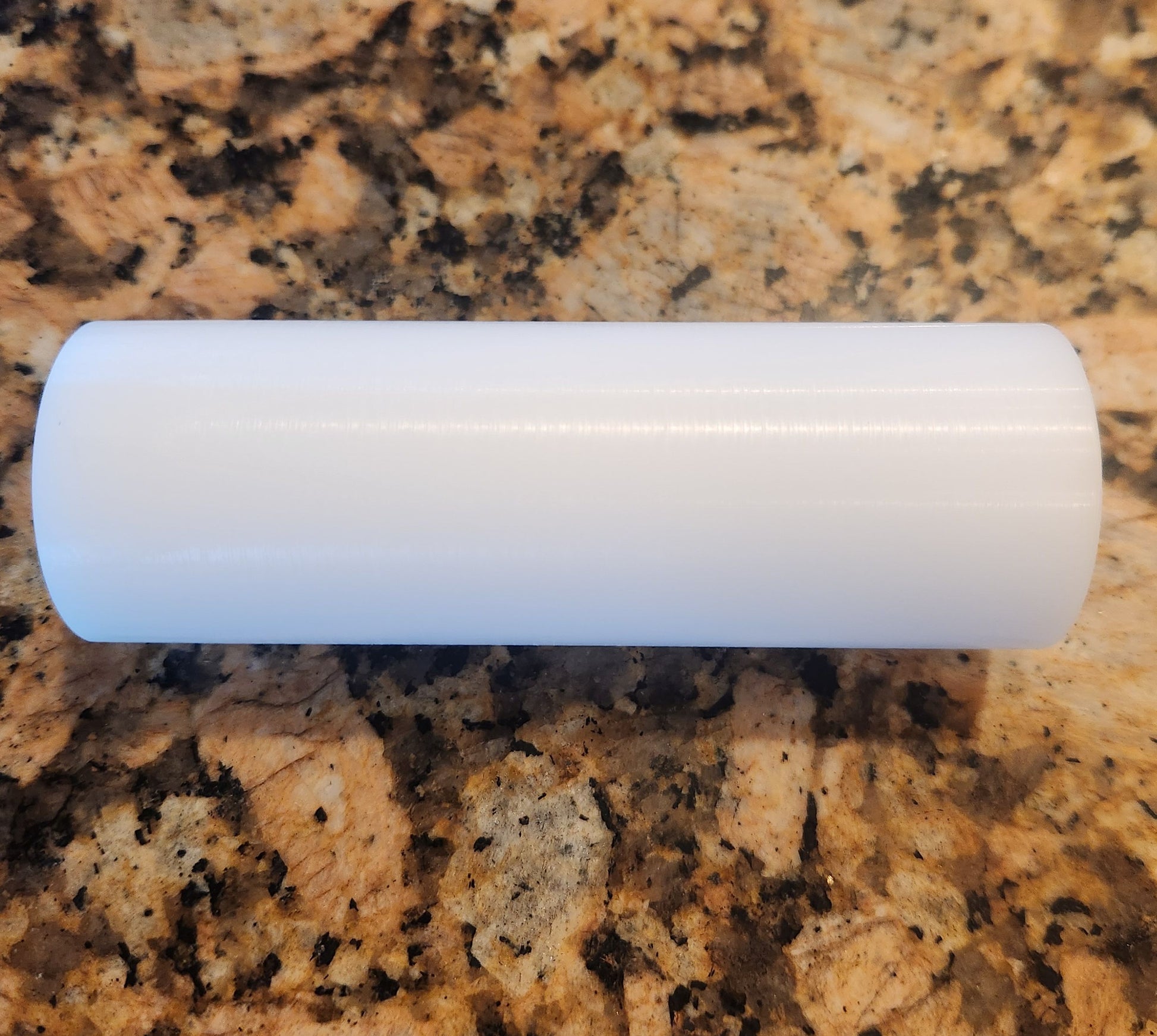

• Pressure Sealing & Core Components: High-grade Silicone Gaskets; Silicone piston seals; POM/Delrin made coffee drip guide; POM/Delrin and Stainless Steel heavy-duty pressure lock components.

Workspace Clearance, Storage & Modularity

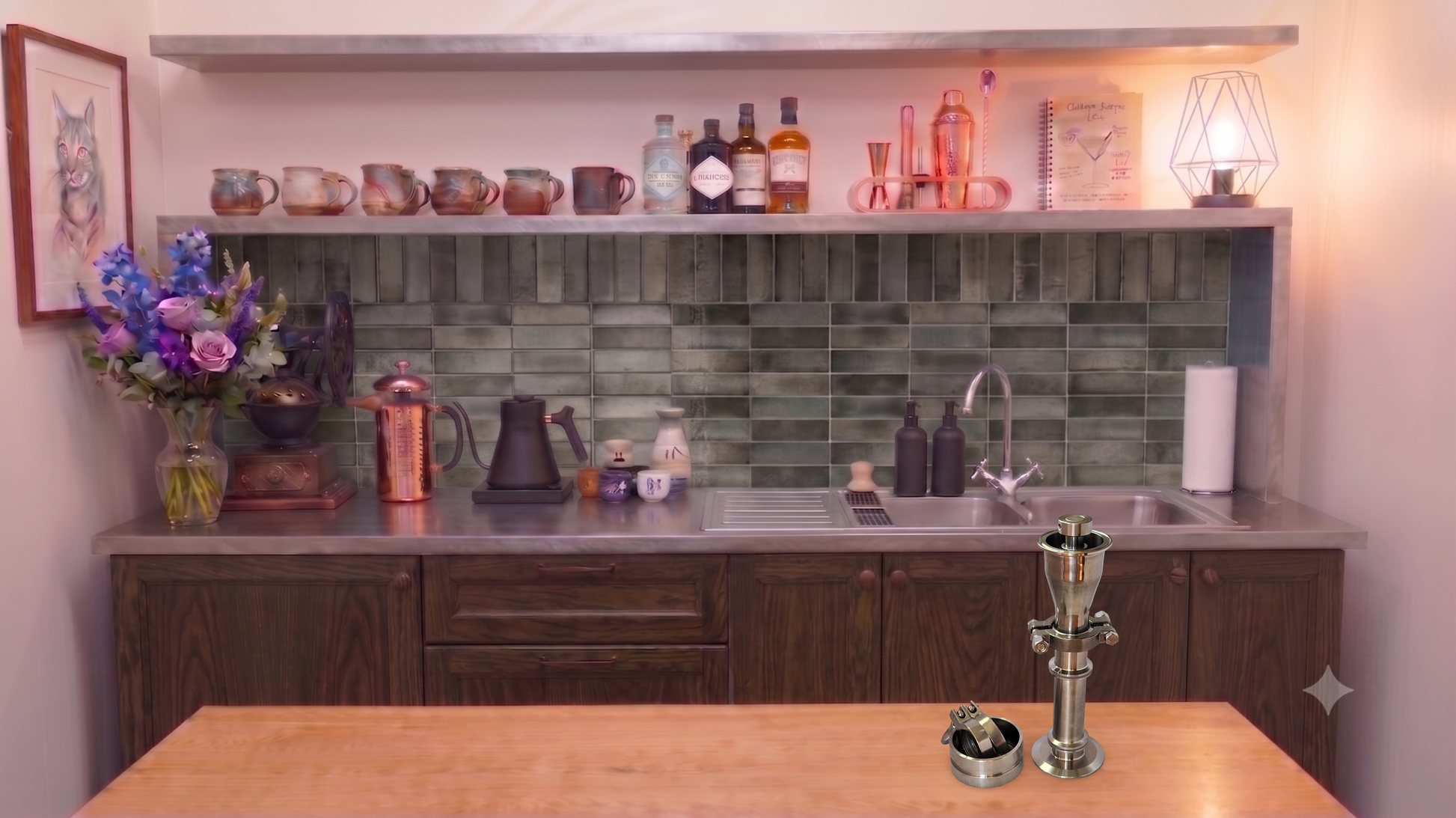

Unlike traditional manual levers that dominate kitchen real estate, the MeeBaa features a transforming, modular geometry that easily adapts to space-restricted environments:

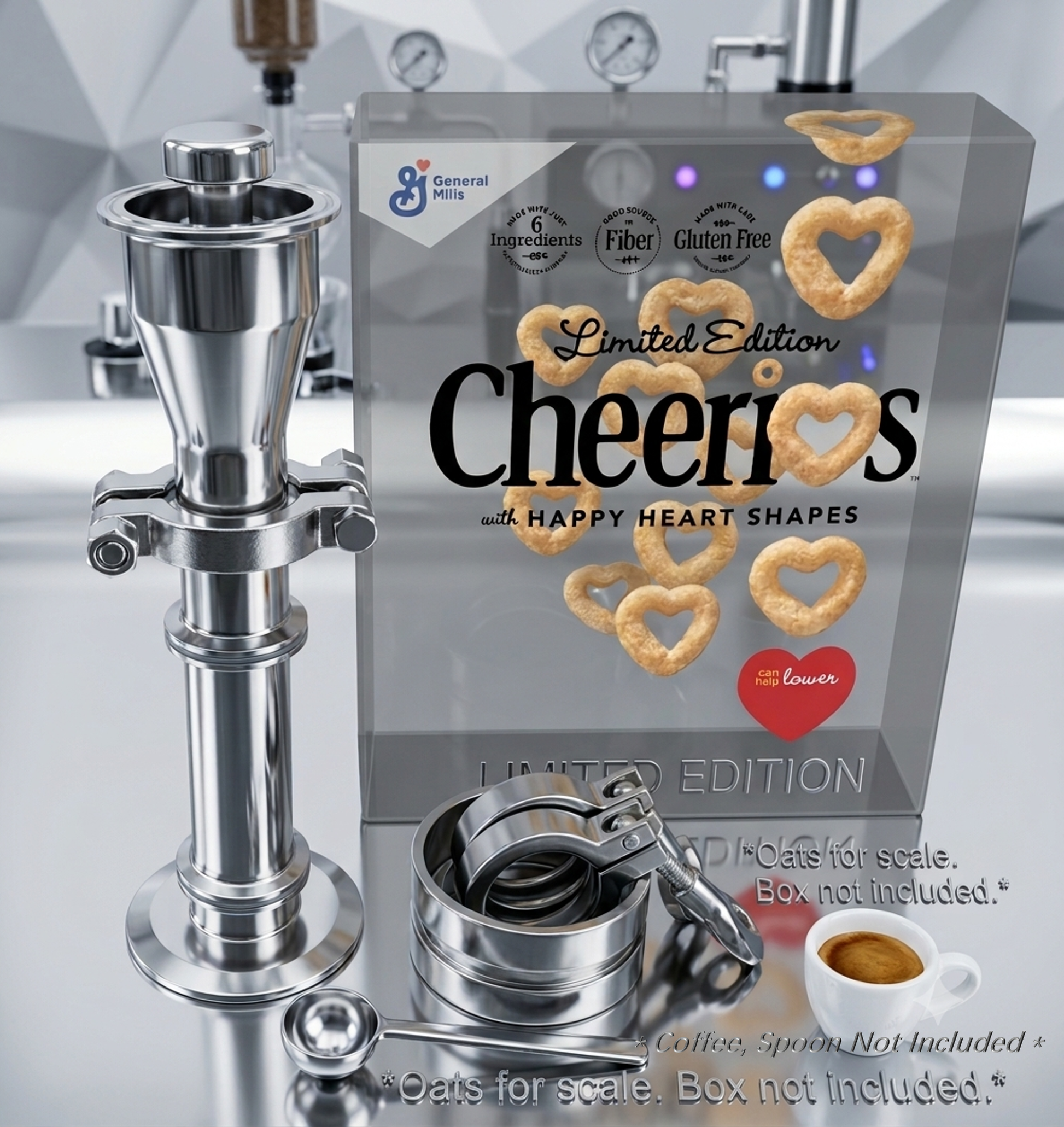

• Standard Countertop Storage: 28 cm total height. When resting on its foot base without the catch cup, it maintains a highly compact countertop profile comparable in scale to a standard breakfast cereal box, sliding effortlessly under standard residential kitchen cabinets.

• Active Brewing Height: Approximately 31.8 cm. During an active shot, the included 4 cm modular metal catch cup sits beneath the foot base to collect the liquid espresso extraction.

• Peak Operational Stroke: 45 cm total clearance required at the absolute highest peak of the manual piston's upward stroke.

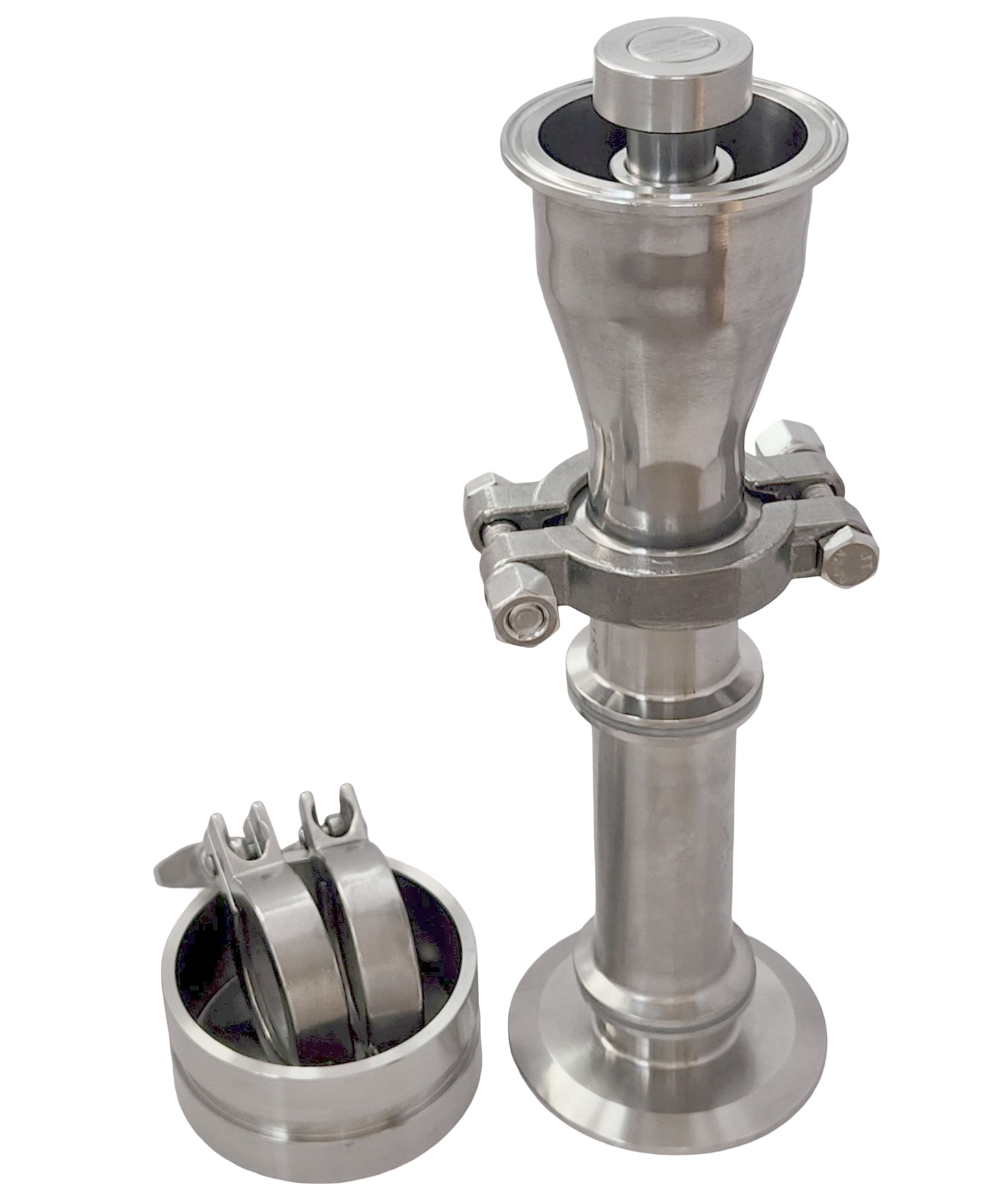

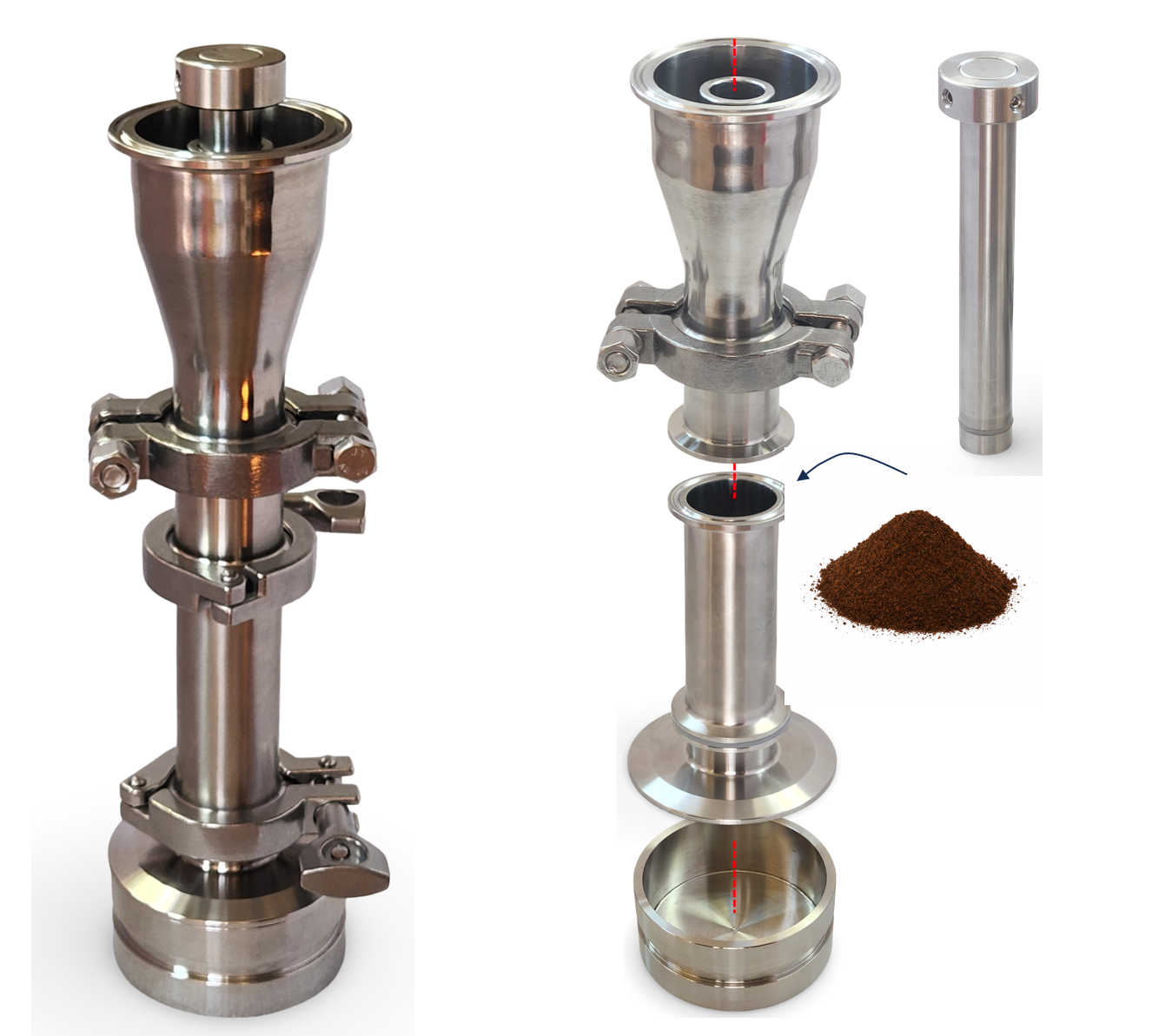

• Tool-Free Quick-Lock Disassembly: The structural column features a tool-free quick-lock connection. For deep storage or transport, you can instantly decouple the machine into two ultra-compact components:

  • Isolated Pressure Chamber Body: approx 15 cm individual height.

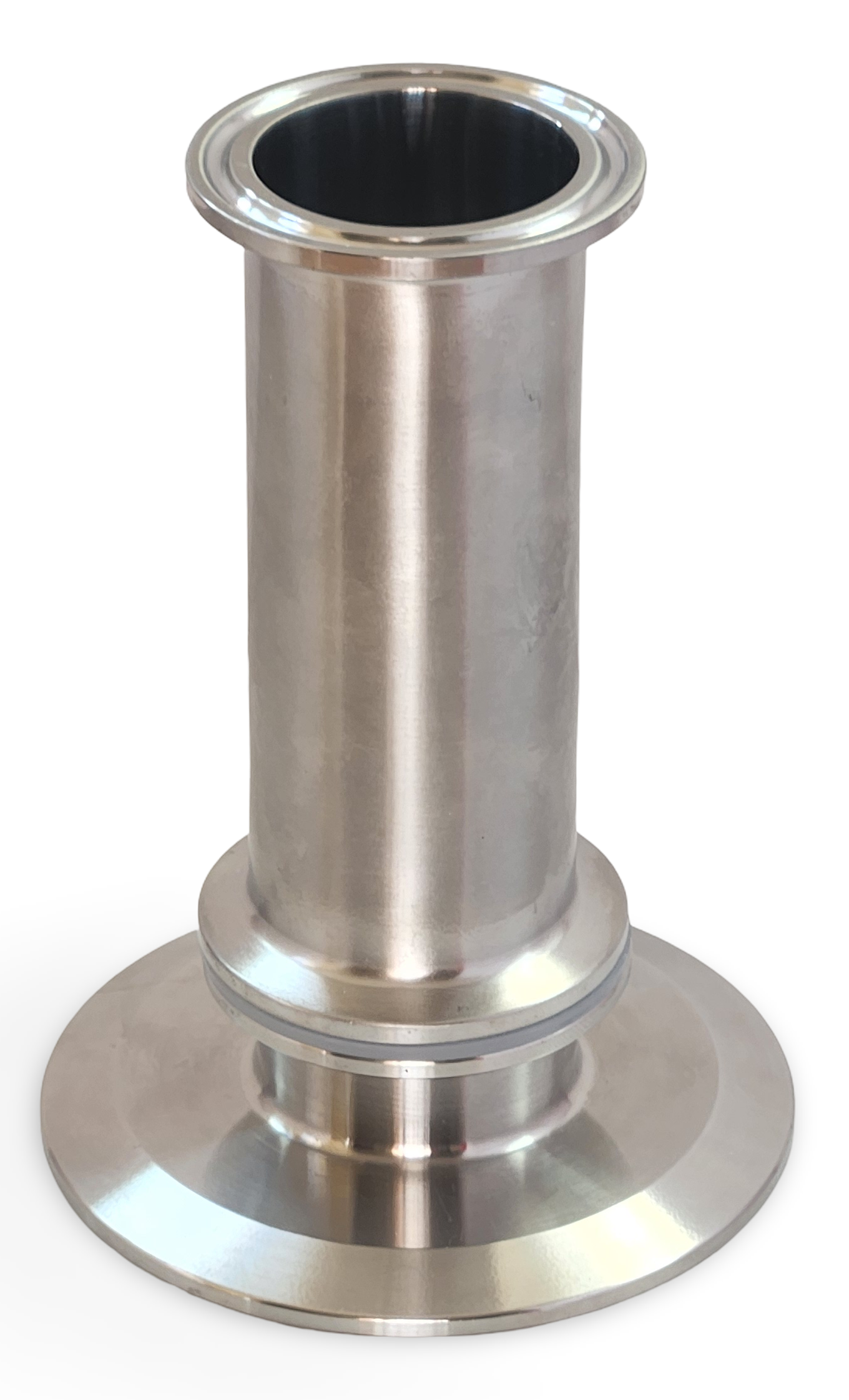

  • Isolated Foot Base & Coffee Tube Column: approx 13 cm individual height.

Core Engineering Principles

1. Mass-Volume Thermal Buffering (Non-Electric Stability)

Standard compact non-electrically heated manual espresso levers suffer from severe thermal draw down because small internal water volumes instantly lose energy to a cool metal body. The MeeBaa S01 completely eliminates this decay curve through raw material mass and a massive 300 ml water reservoir.

Following a standard boiling water preheat, this large volume of hot water acts as an intentional thermal heat reservoir. It buffers against external cooling, maintaining an exceptionally flat, steady extraction curve of 90°C or above across the entire 35-second manual piston stroke—replicating the thermal consistency of heavy commercial group heads without a single wire, sensor, or electrical element.

2. Decoupled Downstream Resistance (DRC)

In traditional manual espresso devices, extraction pressure is rigidly coupled to the resistance of the coffee puck. The MeeBaa S01 introduces Decoupled Downstream Resistance (DRC) via an adjustable inline ball-valve framework. This allows the operator to manually modify the exit flow restriction, maintaining the target 9-bar pressure window even when utilizing coarser coffee grind sizes or high-altitude, light-roast profiles that would instantly channel or choke on a standard open lever setup.

3. Three-Dimensional Dynamic Profiling (3DDP)

By decoupling pressure and flow from the grind size alone, the operator can independently adjust and navigate Extraction Time (T), Water Heat (H), and Piston Pressure (P). This multi-axis control transforms the machine from a basic extraction device into a high-resolution analytical platform capable of mapping a wide radius of unique flavor profiles.

Dual Operational Workflows Included

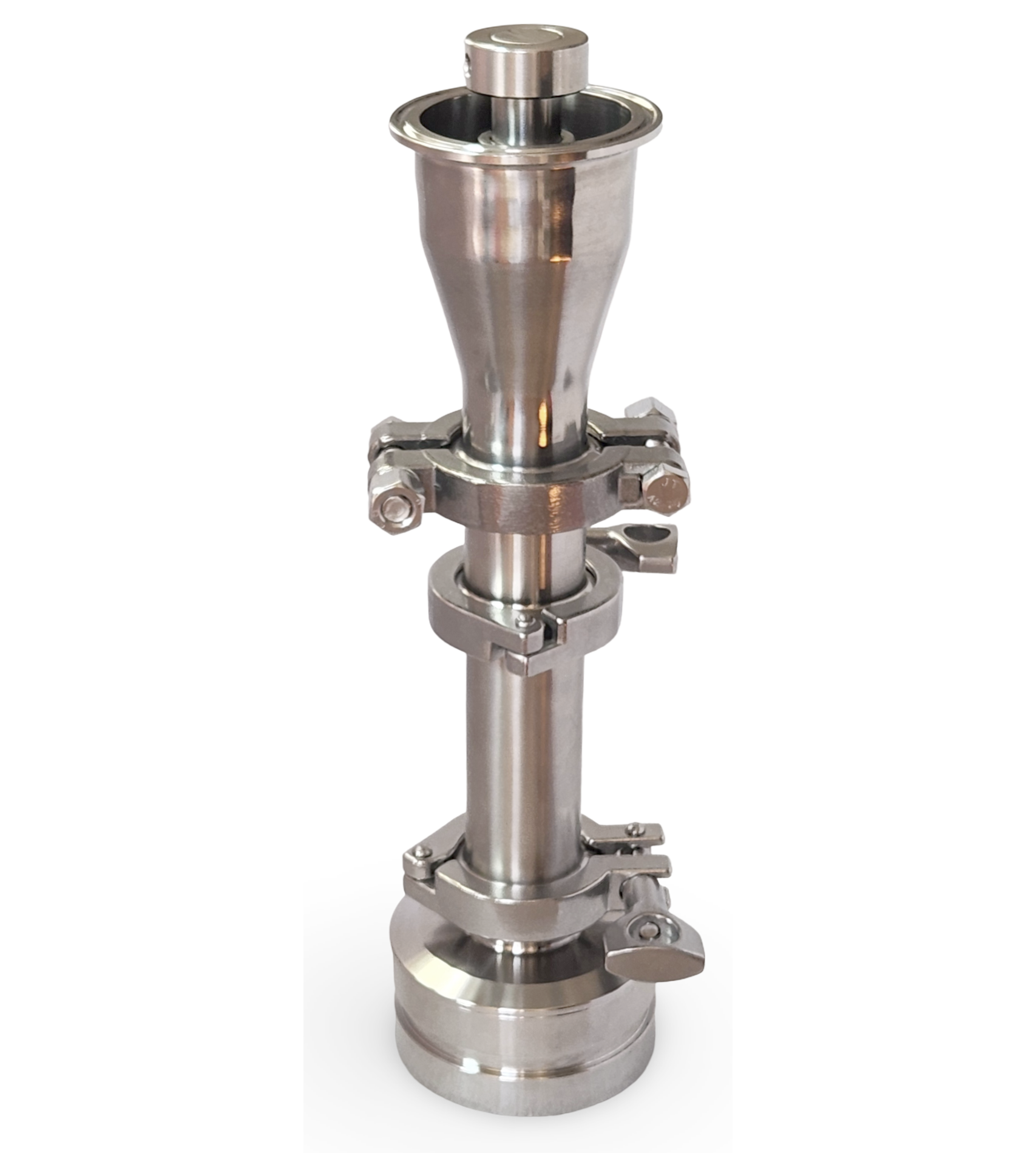

Configuration 1: The Traditional Espresso Path (Grind-to-Pressure)

Operate the machine in its streamlined, native configuration. The operator uses their espresso grinder to tune the coffee particle size to perfectly counteract the 29 kg manual downward push. This maps directly to traditional, industry-standard espresso workflows, providing an everyday repeatable routine with highly predictable tactile feedback.

Configuration 2: The Filter-Compensated Path

Introduce modular, multi-layered, stackable filter configurations inside the plenum (accommodating woven meshes, sintered metal disks, and high-mesh screens). These internal filter layers provide independent, structural mechanical resistance against the piston stroke. This opens up a massive operational safety net, letting you extract rich, dense espresso with much coarser grind sizes, entirely neutralizing grinder inconsistencies and eliminating the risk of sudden high-velocity channeling.

What is Included in the Box:

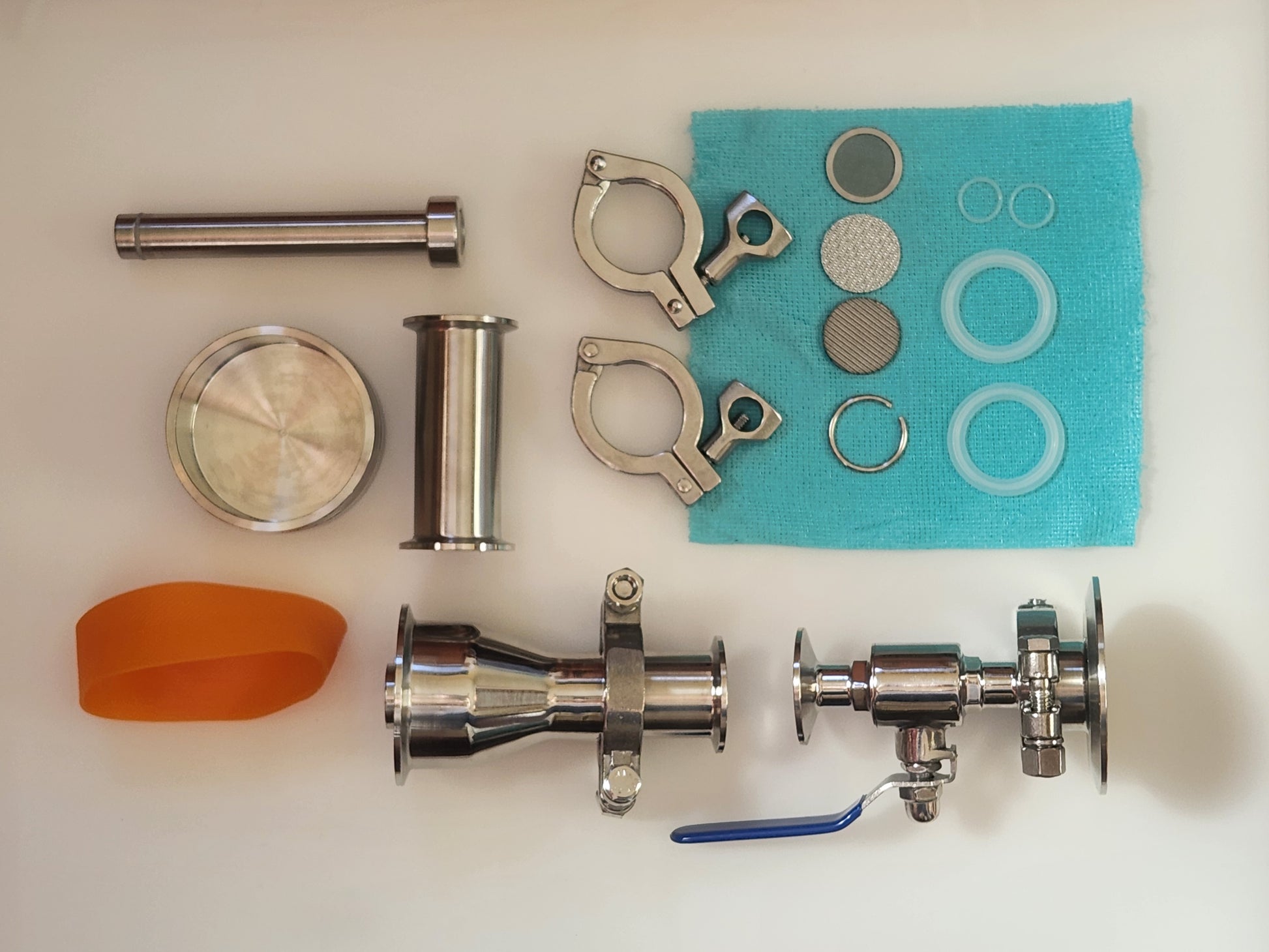

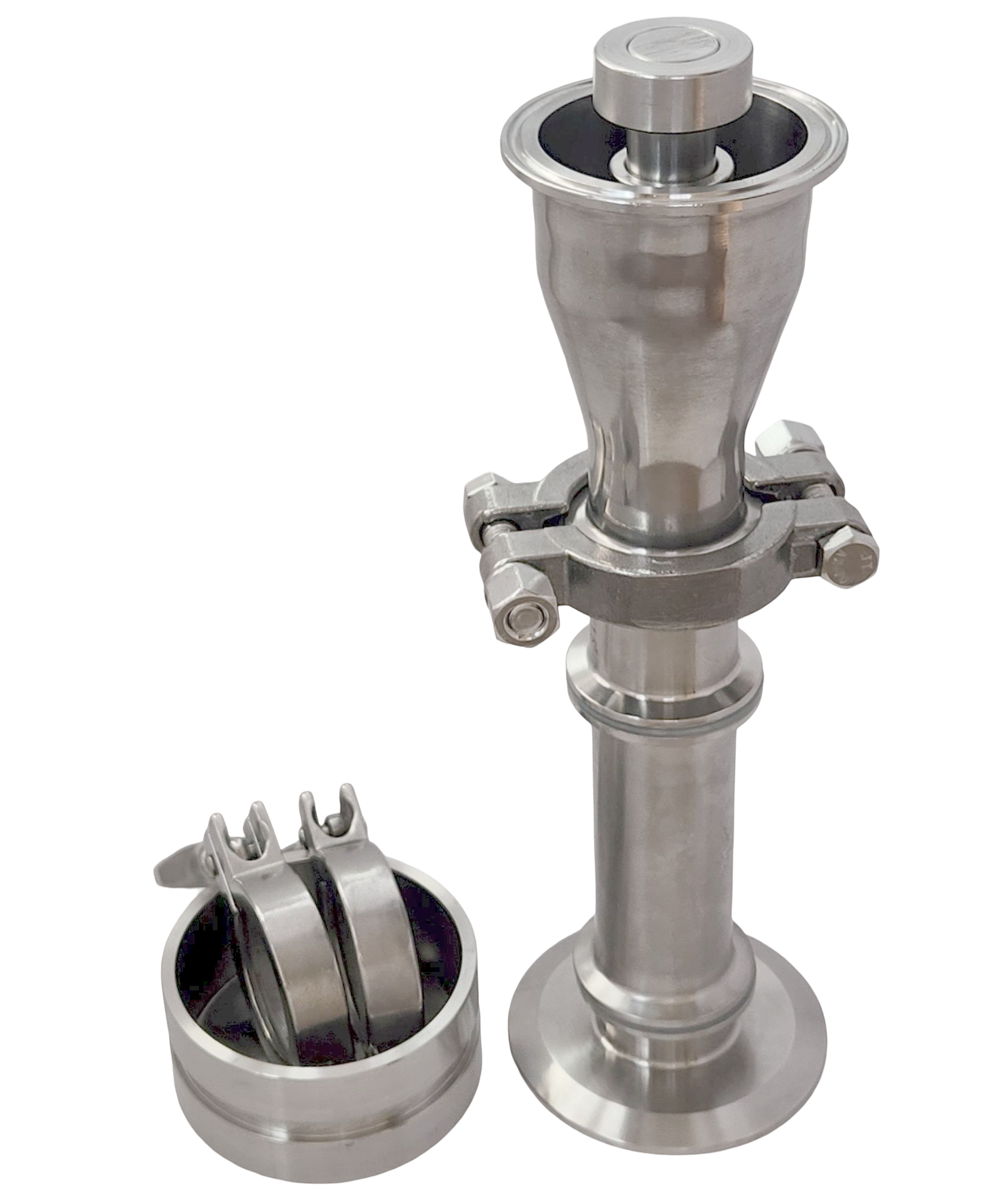

• MeeBaa S01 Base Assembly (Modular Quick-Lock Frame)

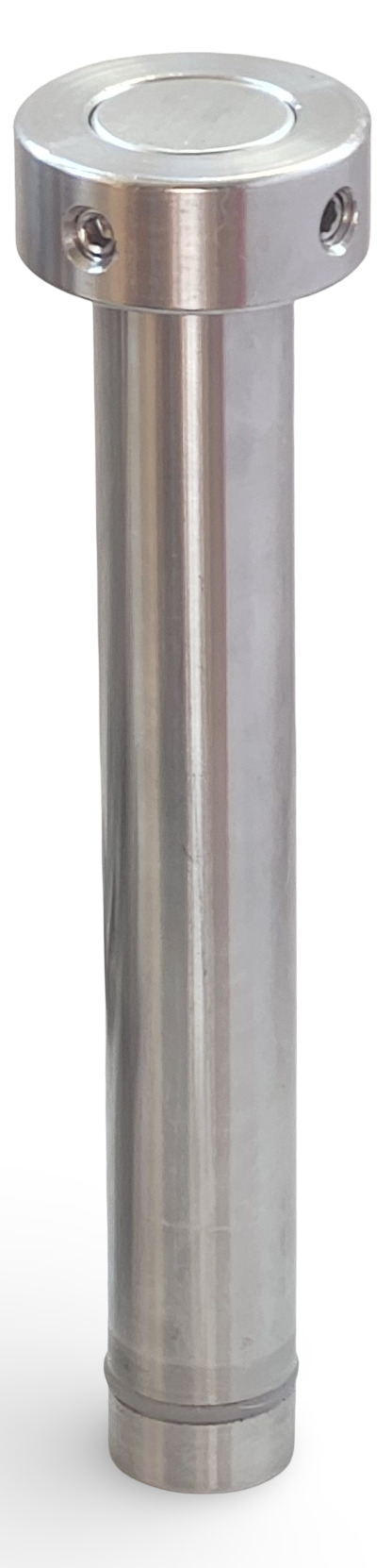

• High-Tolerance Pressure Chamber & Piston Assembly

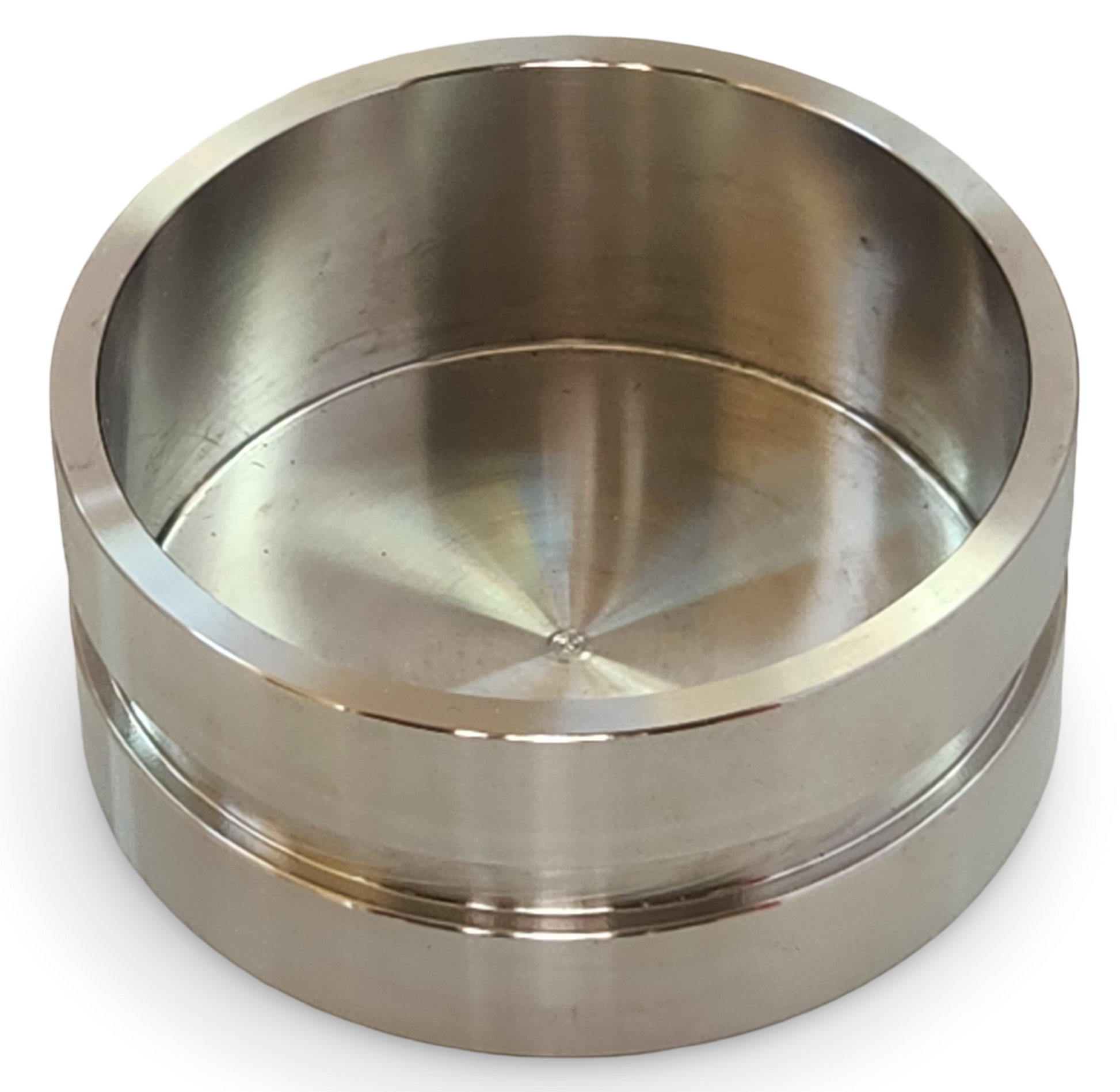

• Modular 4 cm Metal Catch Cup

• Filter Basket Stack (Standard or AB4 — based on your selected option)

• Packaged with care from a dedicated engineering studio.

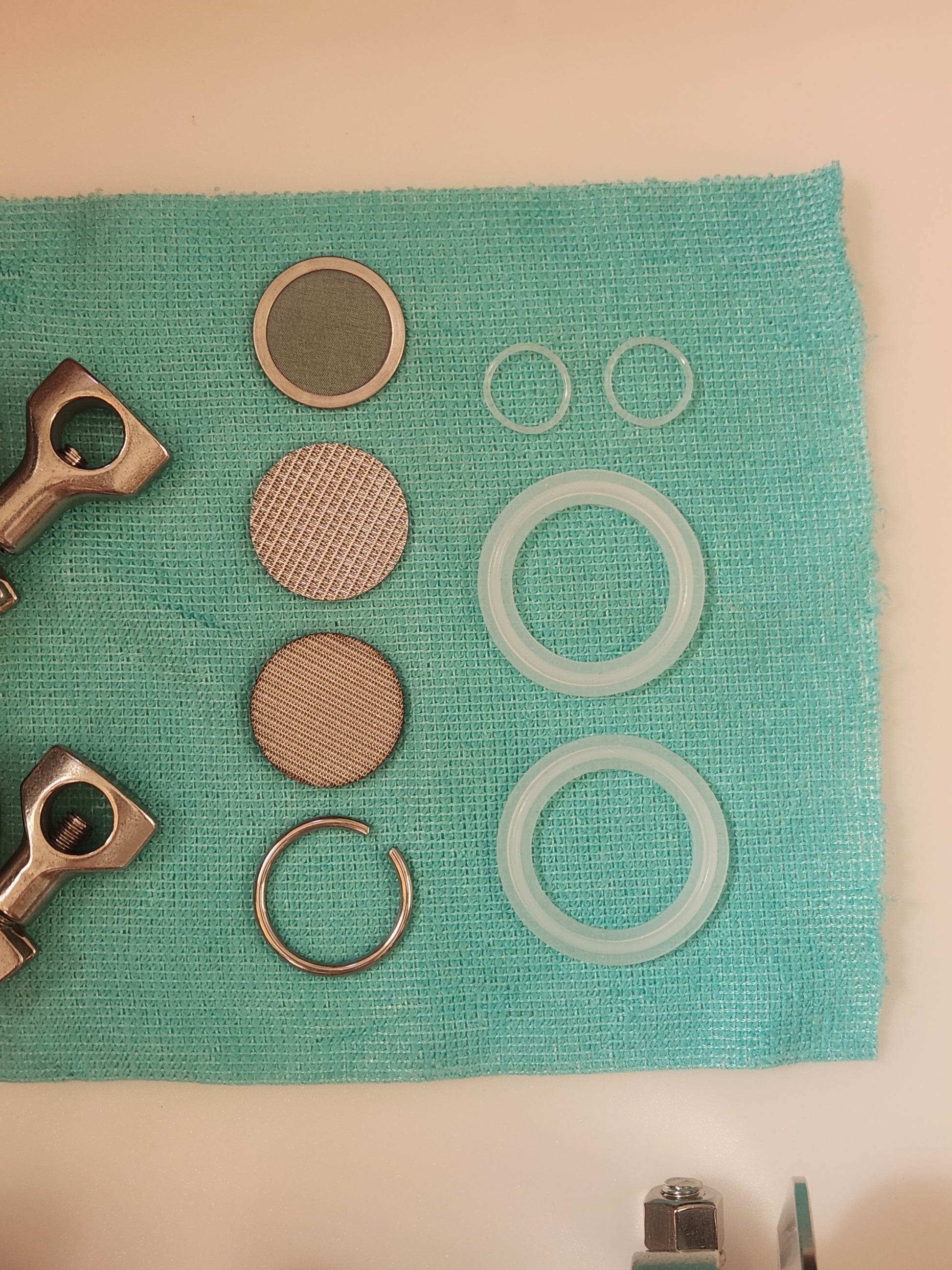

Filter Set Options

This listing is available in two filter configurations. Select your preferred option at checkout:

1. Standard Metal Filter Set

• 1x 316 Stainless Steel Woven-Sintered Mesh Bell Filter (35x2mm)

• 1x 304 Stainless Steel Mesh Filter (34x1mm)

• 1x 316 Stainless Steel Woven-Sintered Mesh Filter (34x3mm or 35x3mm)

2. AB4 Set (Premium Powder Sintered + Woven Sintered Matrix)

• Includes the complete Standard Set, plus:

• 1x 316 Stainless Steel Powder Sintered Filter (34x3mm)

• 1x 316 Stainless Steel Woven Filter (35x4mm)

• 1x 316 Stainless Steel Woven Filter (35x2mm)

• 1x 316 Stainless Steel Woven Filter (35x3mm)

Listing Specifics & Global Logistics

• Product Condition: Brand New, direct from studio-factory.

• Model Interchangeability & Aesthetics: The S01A and S01B series architectural cores function identically and share the exact same internal pressure and extraction capabilities.

  • S01A Visual Profile: From the side view, the top structure features a cup shape profile.

  • S01B Visual Profile: From the side view, the functional pressure tube is visible at the top.

• Country of Origin (COO): United States. While structural raw materials and baseline parts are imported, all precision machining, parts modifications, custom engineering design, testing, and final quality-control assembly are executed locally in the United States.

Shipping & Transaction Policies

• Domestic Shipping: Free USA Shipping via USPS or UPS Ground.

• Return Policy: 30-day return window for pristine, completely unused items (buyer is responsible for return shipping costs).

• ⚠️ Temporary Notice — Return Processing: Return processing for this product is temporarily paused as we reorganize our support team. We expect full return handling to resume shortly. If you have any concerns, please reach out to us before purchasing. We appreciate your understanding and continued support.
