How Multi-Layer Filters Control Water Flow in Manual Espresso
In most espresso discussions, people focus on grind size, tamping, and distribution tools. Very few talk about what happens after water passes through the coffee puck.
Yet, the structure below the puck plays a critical role in whether water flows evenly or forms destructive channels.
This article explains why stacking filters with different pore densities is one of the most effective ways to stabilize espresso extraction.
1. The Problem With Single-Layer Filters
Most traditional espresso baskets use a single thin metal sheet with punched or laser-drilled holes. While this is efficient for mass production, it has important limitations:
- The structure is essentially two-dimensional
- Water exits through flat, straight holes
- Local high-speed jets can easily form
- There is little opportunity for redistribution
When water finds a weak point in the puck, it accelerates through it. A single flat layer cannot slow or correct this behavior.
Once a jet forms, channeling begins.
2. How Water Behaves in Uniform Structures
If all filter layers have the same pore size and structure, water quickly adapts to that environment.
After a short distance, flow becomes stable in preferred paths. These paths reinforce themselves over time:
- Faster flow erodes resistance
- Resistance decreases further
- More water follows the same route
This positive feedback creates permanent channels.
Uniform structures make this process easy.
3. The Power of Density Gradients
A stacked filter system with different pore sizes behaves very differently.
Typical configurations may look like:
- Coarse → Medium → Fine
- Fine → Medium → Coarse
- Mixed porous layers with overlapping ranges
Each transition forces water to reorganize.
At every interface, several things happen simultaneously:
- Deceleration – flow slows when entering finer structures
- Redirection – pathways are interrupted and diverted
- Mixing – neighboring streams merge and separate
- Re-balancing – pressure redistributes across the cross-section
Instead of reinforcing weak spots, the system continuously corrects them.
4. 3D Porous Structures vs Flat Screens

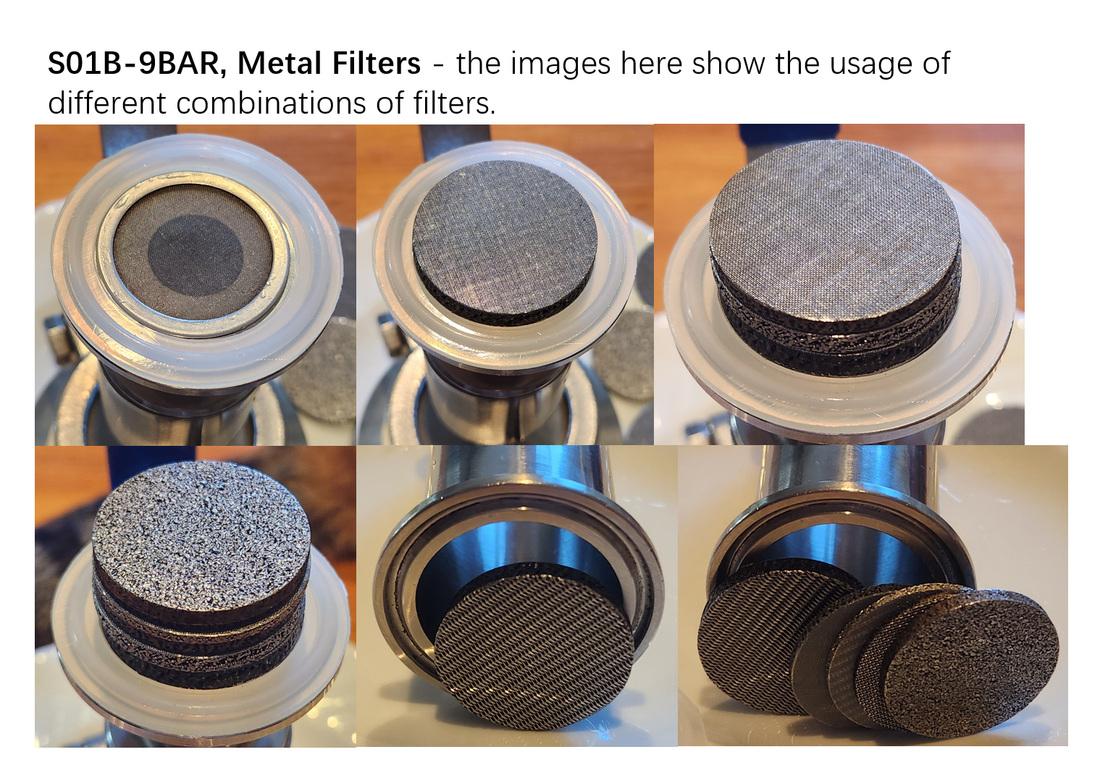

Sintered metal and woven metal filters are not flat sieves. Internally, they look more like:
- Honeycombs
- Ant nests
- Sponges
- Interconnected tunnels
These three-dimensional networks create thousands of micro-junctions.
At each junction, flow is divided, slowed, and redirected.
High-speed jets cannot survive in this environment.
They are broken apart before they can damage the puck.
5. Why Layering Works Better Than Making More Holes
One might think that adding more holes to a basket solves channeling. In practice, this approach has limits.
More holes mean:
- Thinner metal
- Lower structural strength
- Higher deformation risk
- Shorter lifespan
Manufacturers must compromise between flow quality and durability.
Layered porous filters avoid this tradeoff by using volume instead of thinness.
Strength comes from thickness. Control comes from internal structure.
6. Self-Correcting Flow Behavior
Multi-density stacks create what engineers call a self-stabilizing system.
When one region starts flowing faster:
- It encounters higher resistance in the next layer
- Pressure is redistributed sideways
- Neighboring regions catch up
The system actively resists imbalance.
This is why stacked filters remain forgiving even with imperfect puck preparation.
7. Practical Example: Using Fewer Filters
When fewer layers are used (for example, two instead of four), total resistance is reduced.
However, as long as multiple density transitions remain, core stabilization still exists.
This explains why good extractions are still possible even with simplified stacks.
More layers increase margin.
Fewer layers increase sensitivity.
The underlying physics remains the same.
8. Why This Matters for Manual Espresso
Manual espresso machines rely on the user for pressure generation. They lack pumps and electronic flow control.
This makes internal hydraulic stability even more important.
A well-designed filter stack provides:
- Reduced channeling
- Greater grind tolerance
- Less dependence on accessories
- More consistent flavor
- Better long-term reliability
Instead of fixing problems with technique, the machine solves them structurally.
9. Design Philosophy: Build Flow Control Into Hardware
Rather than relying on tools and procedures, a layered filter system embeds fluid control into the machine itself.
It treats espresso extraction as a hydraulic system, not just a brewing process.
This approach prioritizes:
- Physics over trends
- Structure over accessories
- Stability over shortcuts
10. Summary
Stacking filters with different densities works because it prevents water from settling into destructive patterns.
By forcing repeated cycles of:
- Slowing
- Redirecting
- Mixing
- Re-balancing
The system suppresses jet formation and channel growth.
The result is a more forgiving, stable, and repeatable extraction process.
Understanding this principle helps explain why some manual espresso machines feel easy to use while others demand constant correction.
It is not magic.
It is engineering.
