The S01B‑9BAR Filter Stack: How Pressure Really Works
Date: Jan 05, 2026
In our previous deep dive into the water pressure chamber, we looked at the high-tolerance vessel that makes the MeeBaa S01B-9BAR possible.
One of the unique features of the S01B‑9BAR is its manual control over extraction pressure, which relies on a combination of coffee puck preparation, the metal filter stack, and an optional ball valve. Understanding how these elements interact helps users achieve consistent espresso shots while experimenting safely.
A Note on Product Evolution
As we grow, we refine. Please note that the MeeBaa S02B has been removed from the market. While we previously explored lower-pressure designs, we have decided to focus exclusively on the S01B-9BAR flagship.
Pressure Is Generated, Not Automatic
Unlike pump-driven machines, the S01B‑9BAR does not automatically generate 9 bar of pressure. Pressure develops only when the user applies force against resistance. The primary resistance comes from the coffee puck itself—determined by grind size, dose, and how evenly it is tamped—and continues through the layered filter stack. If resistance is low, water flows quickly through the 2 mm outlet and pressure remains low. If resistance is higher, pressure rises proportionally to the user’s applied force, and can reach or exceed typical espresso pressure levels.
The 29 kg Force Reference
A commonly cited reference is that approximately 29 kg of lever force corresponds to 9 bar at the coffee puck. This is a mechanical estimate based on piston area and assumes sufficient downstream resistance. It is intended as a guideline rather than a precise target. In real extractions, pressure varies continuously as water flows and resistance changes. Many successful shots occur at lower applied forces, and small differences in pressure within the 7–9 bar range are subtle in taste for most users.
How the Filter Stack Contributes
The S01B‑9BAR’s filter stack plays a critical role in stabilizing pressure and flow. Each metal filter—whether powder-sintered or woven-sintered—adds small, distributed resistance and helps smooth water flow after the coffee puck. Filters can be stacked singly, in pairs, or even as a triple layer, with a small liquid pooling chamber beneath the stack to equalize pressure across the surface. This configuration allows the system to provide progressive, controllable resistance that guides extraction while remaining safe for experimentation.
The Ball Valve: Optional Fine-Tuning
The user-controlled ball valve is the final resistance point in the system. In most extractions, it remains mostly open because the puck and filter stack provide sufficient pressure. It is used primarily when the user wants to increase resistance, for example to approach higher forces near the 29 kg reference. Pressure differences within the typical espresso range—roughly 7 to 9 bar—produce subtle changes in flavor, so the valve is rarely required for everyday use.
Safe and Confident Experimentation
The S01B‑9BAR is designed to let users experiment with filter stacks safely. Changing the number or combination of filters affects resistance and flow, which in turn influences extraction behavior and flavor. However, no stacking configuration will damage the machine, and even beginners can explore different setups with confidence. This flexibility is part of what makes the S01B‑9BAR unique among manual espresso makers.
Key Takeaways
- Pressure is generated by force against resistance, not automatically.
- The coffee puck is the primary source of resistance, the filter stack stabilizes flow, and the ball valve allows optional fine-tuning.
- 29 kg ≈ 9 bar is a mechanical reference, not a requirement.
- Experimenting with filter stacking is safe and encourages learning about pressure, flow, and flavor.
Hand Press Force in Practice
In real extractions, the pressure at the coffee puck varies continuously as water flows, resistance changes, and the user adjusts force. As a result, the actual pressure experienced during extraction may be higher or lower than this estimate at any given moment.
Mastering the "30-Second Stroke": The pressure is a result of your grind size, bean oiliness, and your filter stack. Your goal is to finish the entire stroke in 30 to 35 seconds. If it’s flowing too fast, lean in and push harder; if it's too slow, ease off. This real-time feedback is why manual brewing is so rewarding.
======
Engineering the Resistance: The Triple-Layer Sandwich
To turn that 29kg push into a perfect shot, you need the right resistance. We achieve this using a precision-stacked "sandwich" of metal filters.
The Recommended Sequence (Top to Bottom):
- TOP: 35x4mm Woven Mesh Filter
- Keeps the coffee puck compressed (see our Tamping Guide for why this matters).

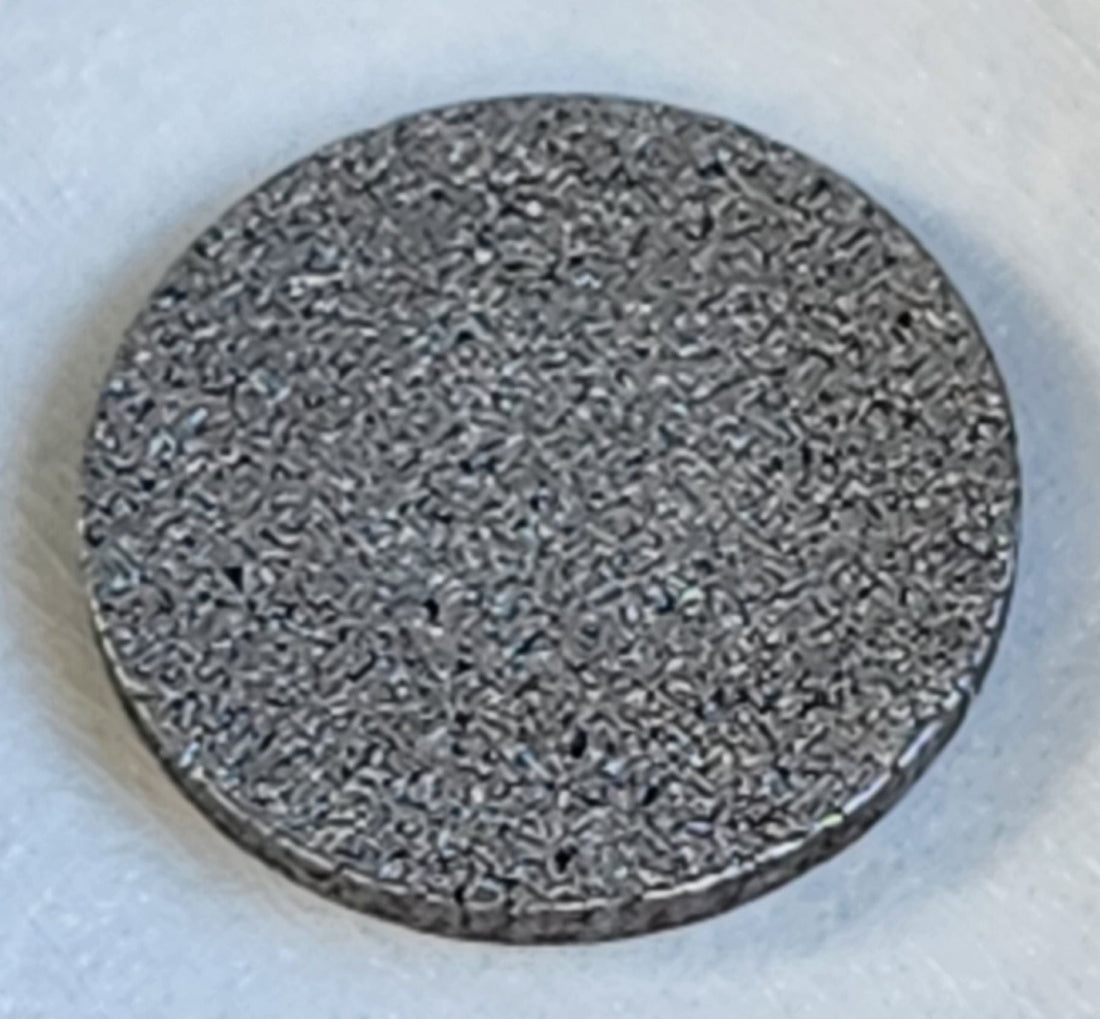

- MIDDLE: 34x3.5mm Sintered Metal Filter (50–150μm pores)
- The "Engine" of resistance. This provides the primary back-pressure.
- BOTTOM: 34x1mm 100-Mesh Filter (with 1mm Outer Ring)
- This creates a "Collector Pool" (Plenum), allowing the coffee to migrate toward the 2mm exit hole without choking.
Note: The AB4 Filter Set available on our eBay store includes all these components for those who want the full experimental experience.
Your Personal Flavor Laboratory
The filters we provide are not a fixed rule; they are a toolkit. You can use 3, 4, or more filters in any order you choose.
- The High-Body Pull: Move the Sintered Filter to the bottom.
- The Flow-Rate Challenge: Double up on layers to see how it changes the "feel" of that 29kg push.
Using Multiple Filter Layers: How to Stack with Confidence.
The S01B-9BAR allows you to safely use multiple metal filters in combination to adjust resistance and flow.
- Beginners can experiment with different stacking configurations without fear of damaging the machine or breaking the shot.
- Each filter adds a small, distributed resistance that smooths flow and helps produce consistent extraction. While the order and combination of filters influence pressure behavior and extraction quality, the system is designed to guide you toward successful results even with different stacking choices.
- The stack works together with the coffee puck and optional ball valve to create progressive, controllable resistance.
