Inside the MeeBaa S01B‑9BAR: Water Pressure Chamber Design Explained

Water Pressure Chamber Design Explained

 If you’re considering a new manual espresso machine, the MeeBaa S01B-9BAR is a strong candidate. It offers excellent value—an affordable option for buyers seeking a stainless steel build with reliable 9-bar capability.

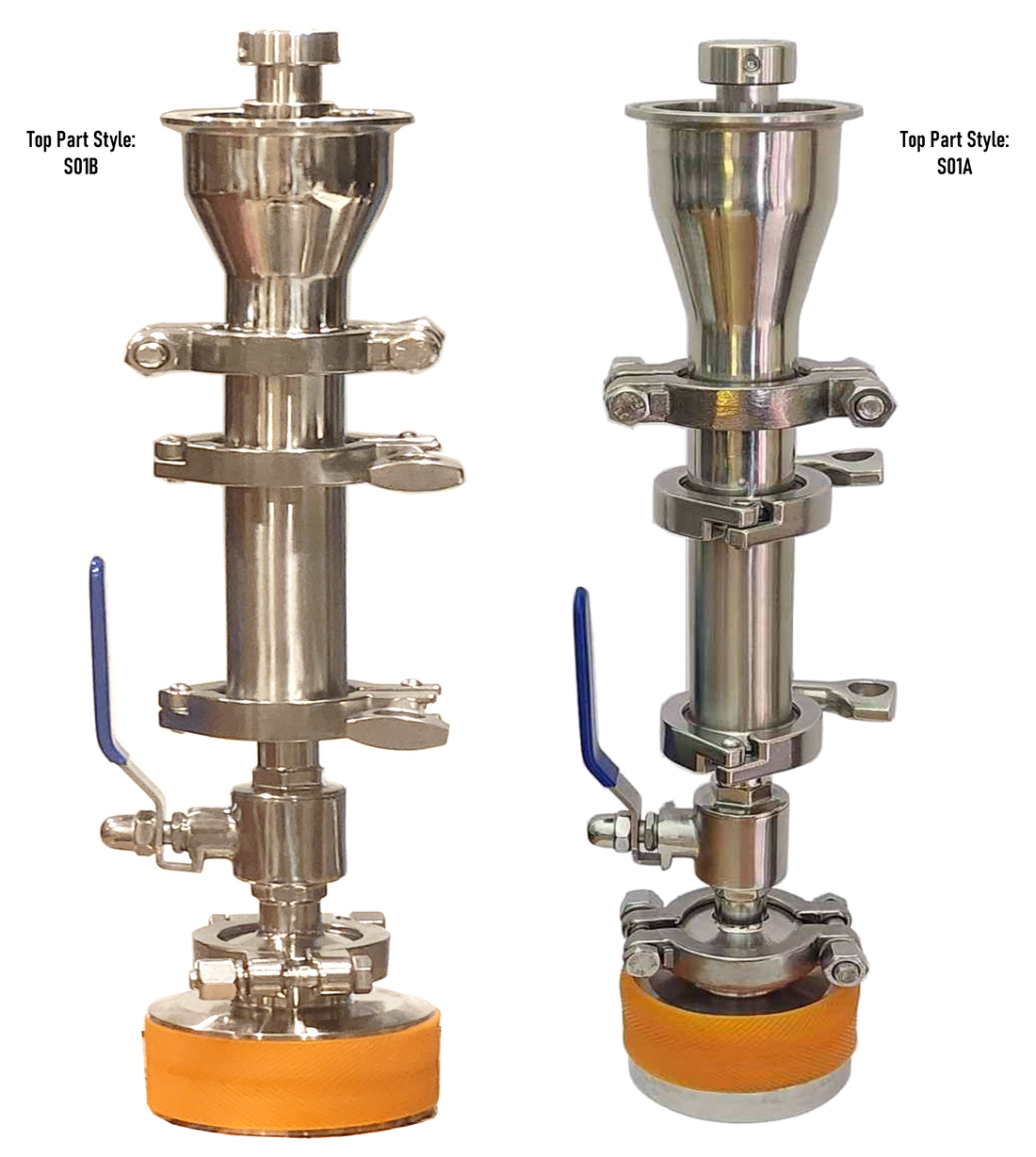

Below, you’ll see the MeeBaa S01A-9BAR and S01B-9BAR models displayed side by side. While the exterior styling differs between Style A and Style B, the core engineering remains identical.


Today, we’ll focus specifically on the internal design of the pressure chamber. We’ll explore how it’s constructed, and evaluate whether it truly supports 9-bar water pressure—and even beyond.

Next, we see a close-up of the MeeBaa pressure chamber assembly, and the internal design elements, that is a list of breakdown elements below. It is featuring precision-engineered stainless steel fittings and a sanitary reducer cup. This component is critical to the machine’s ability to generate and contain high-pressure water flow. The clamp-style connection ensures secure sealing while allowing easy disassembly for cleaning or inspection.

Pressure Chamber Construction and Materials

Component break down:
It is mainly consists of sanitary tube reducer cup 90-100mm height, sealing method, a 50mm height filter tube and making up the chamber geometry that supports 9-bar performance.

Internal Pressure Chamber Design (Conceptual Diagram)

Understanding the Mechanics Behind 9-Bar Stability

Below is a conceptual diagram of the MeeBaa S01B-9BAR pressure chamber. While not drawn to scale, it illustrates the key components and layout that enable stable water pressure during extraction.
This design prioritizes:

• Structural integrity under high pressure

• Thermal retention for consistent shot temperature

• Ease of cleaning and maintenance via clamp-style connections

• Modular adaptability for future upgrades or part replacements

Each element—from the reducer cup to the sealing gaskets—plays a role in maintaining pressure and ensuring flavor clarity in every shot.

Internal Pressure Chamber Breakdown
Conceptual Drawing and Real-World Reference

• In the top-left corner of the diagram, we see a vertical slice of the reducer cup and lower filter tube—this represents the internal geometry where it holds the inner tube, with a stainless steel piston, pressure builds and water flows downward.

• To the right of that drawing is a real image of the pressure chamber’s exterior, showing the stainless steel body and clamp-style fittings that secure the reducer cup and the lower filter tube in place.

• Below that, the diagram continues with a vertical slice of the stainless steel tube, represented by two parallel bars. This view shows the central alignment and wall of the inner tube, 28mm OD x 20mm ID x 100-120mm height, thickness 4mm  of stainless steel that contribute to pressure containment.

• To the right of this slice is a real photo of the stainless steel tube, giving a clear sense of material quality and finish. This tube forms the main body of the chamber and plays a critical role in maintaining structural integrity under 9-bar pressure.

Sealing System and Pressure Control

• Moving further down the diagram, we encounter the sealer tube. This component provides the structural filling and thermal insulation for the sealing of the chamber while also serving as the mounting point for the sealing elements and the inner tube.

• Next down the row, are the double O-rings, positioned to ensure a tight seal between the inner tube and the chamber walls. Under clamping, the o-rings seals inside the fitting disc walls of the upper tube and the lower tube. These prevent micro-leaks under high pressure and help maintain stability at 9 bar and beyond.

• Inside, we see the inner tube O-ring made of stainless steel. Unlike elastomer seals, this metal O-ring is designed for durability and resistance to deformation under repeated pressurization cycles.

• Finally, the drawing includes an angled Delrin (or PTFE) ring. This ring is locked into position to resist expansion of the metal O-ring inside the lower tube. By bracing against outward force, it ensures the chamber maintains its geometry and prevents seal failure even under extreme pressure. Note: MeeBaa S01B version 1.0 (constructed and made before November 2025) does not have the metal o-ring and Delrin/PFFE ring-groove support.

 Step‑by‑Step Flow of Water Through the Pressure Chamber

1.  Entry at the Reducer Cup: Water (hot water) enters through the inner tube inside the reducer cup and then to the lower tube, where the geometry narrows to build initial pressure below the piston and inside the coffee tube (not part of the pressure chamber) below the pressure chamber. This transition ensures smooth flow and sets the stage for controlled pressurization.
2. Sealer Tube Alignment: The sealer tube blocks the water back flow, keeping the inner tube aligned with the chamber’s central axis. The piston from the above is pushing and pressing the water down the tube. The sealer tube prevents leaks, ensures and directs flow toward the coffee tube and the filter stack which is at the bottom of the coffee tube.
3. Double O‑Ring Seal: prevents water from escaping the upper and the lower tubes. The water pressure and the flow only goes downward into the next stage, the coffee tube below the pressure chamber.
4. Inner Stainless Steel O‑Ring: The metal O‑ring inside the lower filter tube, sitting and clamping on the surface groove of the inner tube, resists the movement of the inner tube under repeated cycles. It acts like a pressure brace, keeping the internal chamber geometry intact while water continues to build force. It keeps the inner tube in position even the water under high pressure which would create a push up force on the inner stainless steel tube.
5. Delrin/PTFE Ring Support: Adds additional insurance, the angled Delrin/PTFE ring locks into position, countering the expansion forces of the metal O‑ring. This reinforcement ensures the split metal o-ring doesn’t bulge or lose position under high pressure.
6. Main Inner Stainless Steel Tube: Water flows through the inner tube walls, which contain the full 9‑bar load. Water resistance is building up from the next stage down the pipe, the coffee puck and the metal filters stack at the bottom of the coffee tube.
7. Lower Tube: Passing through the pressure chamber then going into the next stage, finally the pressurized water exits downward into the next stage coffee tube (not part of the pressure chamber) where a filter stack and coffee puck resides.
8. Coffee Tube and Filter Stack: (Not part of the pressure chamber here, and also requires a different blog post for detailed explanations): The hot water being pushed down from the upper part, the pressure chamber, entering and passing through the coffee grounds, coffee puck, this is the place where hot water under high pressure must go through the dense pores of the metal filter stack. Pressurized, hot water, slow flow gives time for deep extraction—flavor compounds dissolve, and the espresso coffee drips out from the filters at the bottom of the coffee tube.

Piston Design and O‑Ring Function

The piston assembly in the MeeBaa S01B‑9BAR has some subtle but important design tricks.

• Silicone O‑Ring Seal: The piston uses a silicone O‑ring that provides a reliable seal against the chamber walls.

• Controlled Looseness: The O‑ring is intentionally a bit loose, allowing tiny amounts of water, if there is, to slip through. This leakage is negligible compared to the main water volume being pushed down during a 30‑second extraction, but it reduces friction and wear.

• No Lubricant Required: Because of this design, the piston does not require special lubricant oil. The silicone material itself provides enough flexibility and smoothness for repeated cycles.

• Practical Reliability: This approach ensures durability, easy maintenance, and consistent performance without adding complexity for the user.

Thermal Stability and Water Retention

The reducer cup - the bell shape cup, surrounding the inner tube serves more than one purpose.

• Heat Reservoir: By holding a body of hot water around the inner tube, the reducer cup helps to maintain the inner tube temperature in the ideal range of 90–95 °C, with preheat of hot water.

• Temperature Stability: This design prevents the chamber from cooling too quickly during a 30‑second extraction, and even during pauses of up to a few minutes.

• Drip Capture: If any water slips out of the inner tube, the reducer captures it, preventing mess and keeping the chamber environment stable.

• Consistent Extraction: Together, these functions ensure that the water reaching the coffee puck remains at the right temperature and pressure, supporting flavor clarity and repeatability.

• Practical Reliability: This flexibility means you don’t need to worry about exact timing; the system adapts to your pace without compromising flavor or pressure stability.

User Experience: Engineering Meets Everyday Espresso

 The MeeBaa S01B‑9BAR isn’t just about stainless steel and seals—it’s about how those design choices translate into real use.

• Piston Stroke Length: The piston stroke is about 10 cm, that is 4 to 5 times the length of many other manual espresso maker. This gives the user enough time to hand feel the pressure and directly drive the piston with the right force.

• Coffee Cup / Holder Geometry: For most of the other manual espresso machine, the coffee ground holder cup is about 50mm in diameter. When packed with coffee ground, the puck height is about 15 to 20 mm. Their piston movement is about 20mm.

• Smooth Piston Operation: The silicone O‑ring provides a reliable seal without needing special lubricants. Its controlled looseness means smoother pressing and less maintenance.

• Leak‑Free Stability: Double O‑rings and the stainless steel inner ring ensure pressure integrity, so every shot is consistent.

• Thermal Buffering: The reducer acts as a hot water reservoir, keeping the inner tube at 90–95 °C even during pauses.

• Flexible Timing: Whether you press quickly or take one or two minutes between actions, the chamber design adapts, maintaining temperature.

• Flavor Reliability: All of these features combine to deliver shots with clarity, body, and crema—without the user worrying about technical precision.

 Why 9 Bar Matters

Espresso isn’t just about hot water—it’s about pressure and controlled timing. The industry standard of 9 bar (roughly nine times atmospheric pressure) is the sweet spot where water extracts the coffee’s oils, aromatics, and soluble compounds without over‑ or under‑extraction.

• Flavor Balance: At 9 bar, the shot achieves clarity and sweetness. Too little pressure leads to sour, weak coffee; too much can cause bitterness and harshness.

• Crema Formation: Stable pressure helps emulsify oils, creating the golden crema layer that signals a proper espresso.

• Consistency: The MeeBaa S01B‑9BAR’s chamber design ensures that pressure doesn’t sag during pauses or long presses, so every shot is repeatable.

• Café‑Quality at Home: By reliably hitting 9 bar, the machine delivers the same extraction profile professional baristas aim for—without pumps, electronics, or complicated maintenance.

Design Choices That Support 9 Bar

Every component of the MeeBaa S01B‑9BAR pressure chamber is engineered with one goal: stable extraction at 9 bar.

• The upper cup - Reducer Geometry: By the shape, the cup upholds the inner pressure tube in place at the center,  and mean while providing hot water around it, while also acting as a thermal reservoir to keep water at 90–95 °C.

• Sealer Tube: Aligns the inner tube in place while water flows inside the inner tube. It is main function is to prevent back flow and leaks, ensuring pressure is directed straight into the puck down inside the coffee tube.

• Double O‑Rings: Provide leak‑free sealing, locking pressure inside the chamber so none is lost to micro‑gaps.

• Stainless Steel Inner O‑Ring: Ensures lasting pressure stability by locking the inner tube against 9‑bar water force. Working with the stopper sealer, it keeps the chamber secure and reliable shot after shot.

• Delrin/PTFE Ring: Reinforces the metal O‑ring, preventing expansion of the o-ring and ensuring the inner tube does not move under load.

• Piston with Silicone O‑Ring: Creates a smooth seal without lubricant, allowing consistent downward force while minimizing friction.

• Thermal Buffering: The reducer’s hot water reservoir stabilizes temperature during pauses, whether 30 seconds or two minutes, so pressure and flavor remain consistent.

Together, these design choices make the MeeBaa S01B‑9BAR more than just “9 bar capable”—they make it 9 bar reliable, even in real‑world use where timing and technique vary.

From Engineering to Espresso

Every detail of the MeeBaa S01B‑9BAR pressure chamber—reducer cup, seals, piston tricks, and thermal buffering—was designed with one purpose: to make café‑quality espresso achievable at home.

• Engineering Precision: Stainless steel tubes, double O‑rings, and the Delrin/PTFE reinforcement ensure pressure stability and durability.

• Thermal Reliability: The reducer’s hot water reservoir keeps the chamber at 90–95 °C, even during pauses, so flavor stays consistent.

• User‑Friendly Design: The piston’s silicone O‑ring works smoothly without lubricants, and the chamber adapts to different pressing speeds.

• Flavor Confidence: By reliably sustaining 9 bar, the system extracts sweetness, crema, and clarity—hallmarks of a professional shot.

This is where engineering meets everyday espresso. The chamber doesn’t just look robust—it delivers reliability, flexibility, and flavor in real use. For enthusiasts, it’s proof that thoughtful design can bridge the gap between workshop innovation and the ritual of pulling a perfect shot.

MeeBaa S01B‑9BAR: Café‑Quality Espresso, Engineered for Home

The MeeBaa S01B‑9BAR isn’t just another manual espresso machine—it’s a precision‑engineered system designed to give you café‑quality shots at home. Every detail, from the piston seal to the thermal reservoir, was built with real users in mind.

• Easy to Use: The piston’s silicone O‑ring creates a smooth seal without messy lubricants. Just press and brew.

• Consistent Flavor: Double O‑rings and stainless steel reinforcement lock in pressure, so every shot delivers sweetness, crema, and clarity.

• Temperature Stability: The reducer holds hot water around the inner tube, keeping extraction at 90–95 °C—even if you pause for a minute or two.

• Café‑Quality Results: By sustaining the gold‑standard 9 bar of pressure, the MeeBaa S01B‑9BAR extracts the same balance and crema professional baristas aim for.

This is espresso made simple: no pumps, no electronics, no fuss—just engineering you can trust and flavor you can taste.

Price and Market Position

The MeeBaa S01B‑9BAR as a whole, is designed to deliver café‑quality espresso at a fraction of the cost of high‑end machines. By focusing on mechanical precision instead of electronics or pumps, it keeps the price accessible while still meeting the gold standard of 9 bar extraction.

• Affordable Value: Positioned well below premium machines, it offers enthusiasts a way to achieve professional results without a four‑figure investment.

• Market Fit: Ideal for espresso at home makers, coffee hobbyists, and home baristas who want reliability and flavor without unnecessary complexity.

• Competitive Edge: While other machines rely on electronics and frequent maintenance, the MeeBaa’s stainless steel chamber and piston design provide durability and simplicity.
